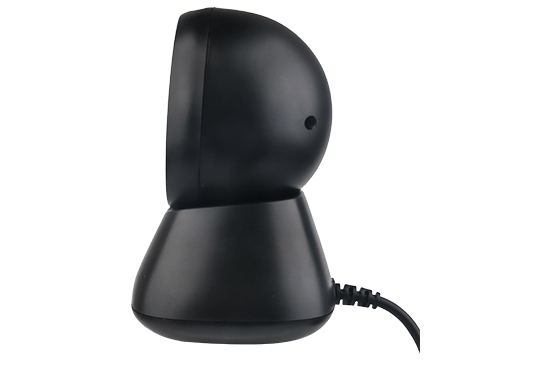

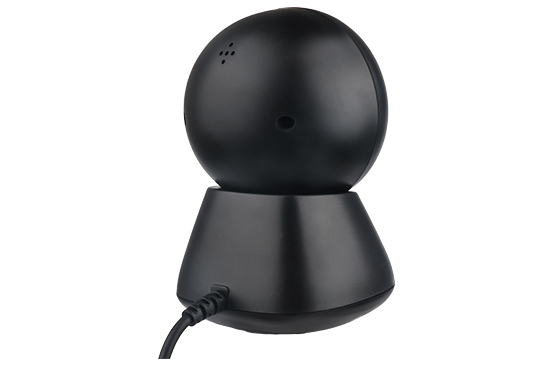

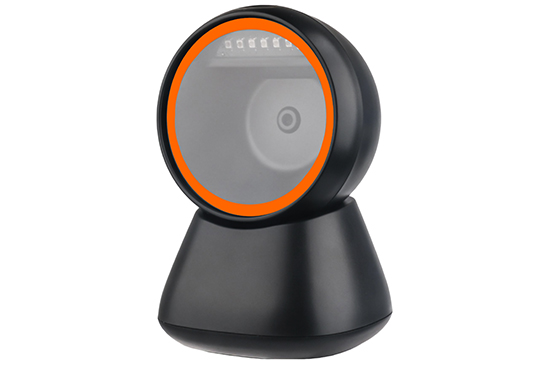

C1200 is a small size 2D image hands-free presentation barcode scanner, and it supports scan all kinds of printed barcode and mobile phone screen barcode. It optimized for retail, logistics, manufacturing, healthcare and other fields of applications.
Back to list >>
Excellent Identification Ability
High performance scanning module, with superior wide field-of-view, omni-directional scanning capability.
Automatic interface detection
Enable the scanner to configure appropriate interface once connected, avoid the tedious
task of scanning programming
Convenient and Comfortable Operation
Small size and ergonomics design to provide superior operation experience, save room and boost work efficiency.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Grade Durability
IP54 industrial grade, non-removable USB cable, no worry operate device in dust and moist circumstances.
| Performance Parameters | |
| Image sensor | COMS |
| Resolution | 640x480 pixels |
| Decode capability | 1D : UPC/EAN, Code 128, Code 39, Code 39 (Full ASCII), code32,Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: PDF417, Micro PDF417, QR code, Micro QR, Data Matrix, Aztec, etc. |
| Scan Angle | ±360°, ±65°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Depth of field | 20-470mm |
| Prompt mode | Buzzer, LED indicator light |
| Trigger mode | Auto-induction scanning |
| Setting method | Scan configuration barcode |
| Current and voltage | 115mA(standby), 280mA (working), 5VDC±10% |
| Physical Parameters | |
| Over dimension | L X W X H (95.3x92.9x148.2mm) |
| Weight | 262.3g |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | 1.5m |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
