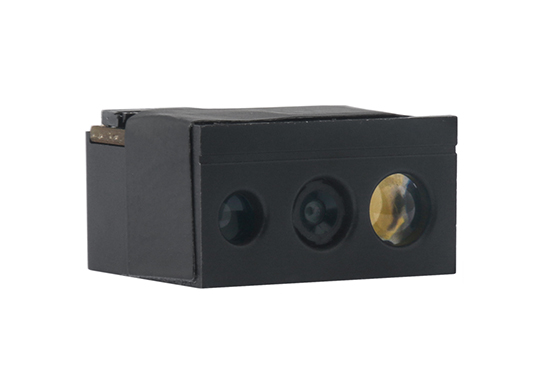

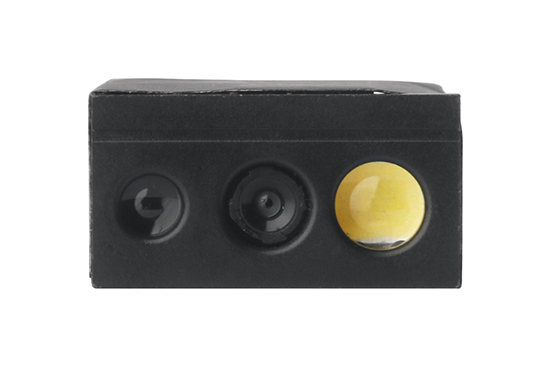

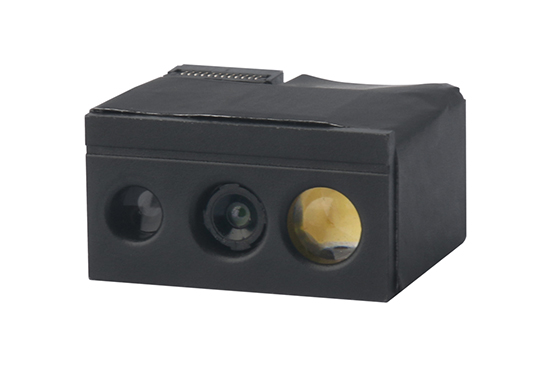

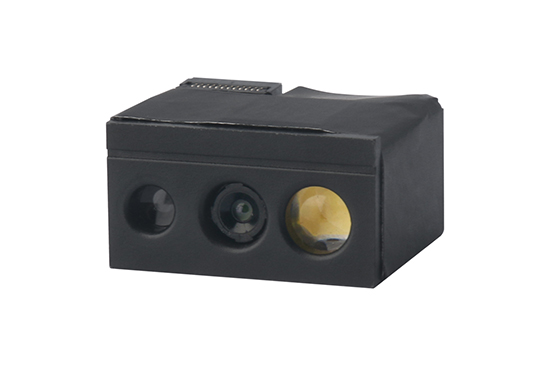

    2D Image Scan Engine

    Model:SE6060

    SE6060 image scan engine, integrated with 1280*800 pixels image sensor, and scanning range over two meters, has superior international advanced 2D decoding performance, with excellent performance in reading screen and printed barcode.

    Back to list >>

    Excellent Identification Ability

    High performance 1280*800 pixels scanning module, easily decode all common one and two dimension symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.


    Super Easy Operation and Compatibility

    Easy compatible with multiple language and keyboard layout, compact size fits for many situations, and provide TTL and USB interfaces.


    Customize Service and Easy embedded

    Support customize interface, cable, and secondary development, mini dimension and  ergonomics design make it could embedded in multiple devices and industries.


    Compatible with Multiple Operating System

    Work well with Linux, Mac, Windows, IOS and Android OS perfectly.


    Wide View Scanning Angle and Decoding Performance

    Wide vision angel and scanning range, excellent aiming and decoding light helps it easy to scan the bar codes in dark environment.


    Performance Parameters
    Light sourceVisible red light (610-640nm) for aiming, and 6500K LED for lighting
    Image sensorCMOS
    Resolution1280x800 pixels
    Decode capability

    1D: UPC/EAN, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, code 93, code11, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc.

    2D: QR code, Micro QR, PDF417, Micro PDF417, Data Matrix, Aztec, etc.

    Depth of filed20-2100mm
    Scan angle±360°, ±60°, ±55°(Roll, Skew, Pitch)
    Scan precision≥3mil
    Print contrast20%
    InterfaceFPC 12PIN Pitch 0.5
    Data communication methodUSB, USB-COM, TTL
    Trigger mode

    Auto sensing scanning, Continuous scanning,

    Manual scanning

    Setting methodScan configuration barcode
    Current

    95mA(standby), 200mA (working), DC 3.3-5.0V

    Physical Parameters
    Over dimensionL X W X H (21.5x15.9x11.3mm)
    Weight3.8g
    MaterialABS+PC environmentally friendly materials

    Environmental Parameters

    Working temperature-20°C to 50°C
    Storage temperature-40°C to 60°C
    Anti-dropWithstand drop from 1.8m to concrete floor
    Humidity5% to 95% RH
    Circumstance luminance0-100,000Lux
