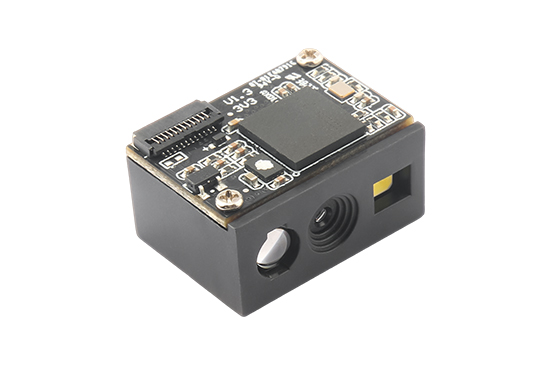

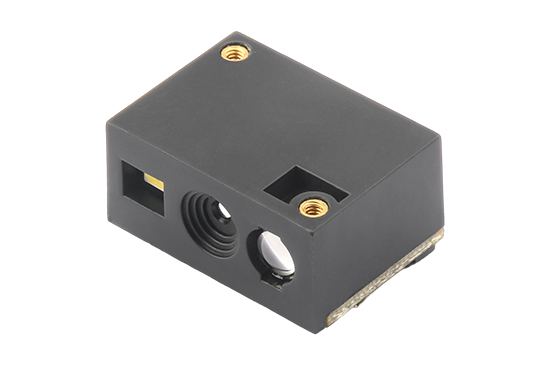

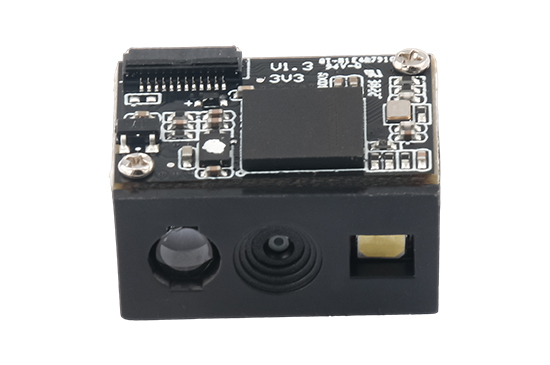

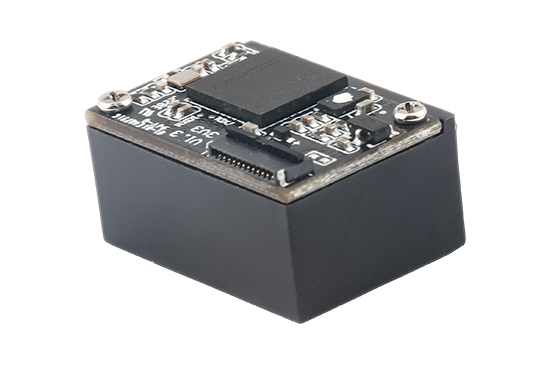

SE6000 image scan engine, has superior international advanced 2D decoding performance, with excellent performance in reading screen and printed barcode. Mini size make it embed into barcode scanner device easily.
Back to list >>
Excellent Identification Ability
High performance scanning module, easily decode all common one and two dimension symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Super Easy Operation and Compatibility
Easy compatible with multiple language and keyboard layout, compact size fits for many situations, and provide TTL and USB interfaces.
Customize Service and Easy embedded
Support customize interface, cable, and secondary development, mini dimension and ergonomics design make it could embedded in multiple devices and industries.
Compatible with Multiple Operating System
Work well with Linux, MAC, Windows, Android OS perfectly.
Wide View Scanning Angle and Decoding Performance
Wide vision angel and scanning range, excellent aiming and decoding light helps it easy to scan the bar codes in dark environment.
| Performance Parameters | |
| Light source | Visible red light (610-640nm) for aiming, and 6500K LED for lighting |
| Image sensor | CMOS |
| Resolution | 640x480 pixels |
| Decode capability | 1D: UPC/EAN, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, code 93, code11, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: QR code, Micro QR, PDF417, Micro PDF417, Data Matrix, Aztec, etc. |
| Depth of filed | 30-550mm |
| Scan angle | ±360°, ±60°, ±55°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Interface | FPC 12PIN Pitch 0.5 |
| Data communication method | USB, USB-COM, TTL |
| Trigger mode | Auto sensing scanning, Continuous scanning, Manual scanning |
| Setting method | Scan configuration barcode |
| Current | 95mA(standby), 175mA (working), DC 3.3-5.0V |
| Physical Parameters | |
| Over dimension | L X W X H (15.5x21.3x11.5mm) |
| Weight | 3.3g |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8m to concrete floor |
| Humidity | 5% to 95% RH |
| Circumstance luminance | 0-100,000Lux |
