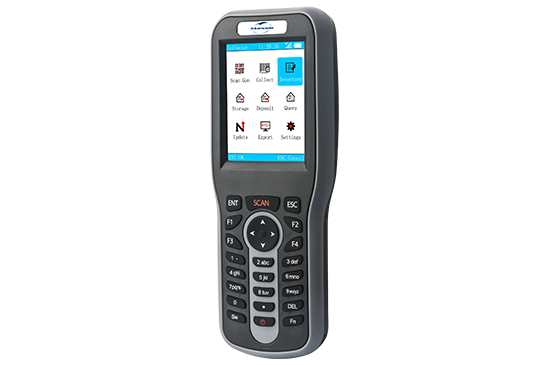

S30 with professional high-performance image scan engine, and take 2.4GHz wireless technology, with 2.4G data receiver dongle receiving barcode data. Easily read printed and on-screen 1D and 2D symbology.
Back to list >>
Ultra-long Distance Data Transmission
100 meters long distance data transmission, supports automatic frequency modulation and inventory mode, and has 16MB memory to save data information.
Highly Accurate and Fast Scanning
High performance scanning module, easily decode all common 1D and 2D symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Providing Multiple Scanning Method
Manual scanning, continuous scanning with configurable scanning time interval and automatic induction scanning to meet various application scenarios.
Super Easy Operation and Compatibility
2.8 inch TFT color LCD Screen, 240x320 screen resolution, 32-bit true color, make users operate device easily and
conveniently.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.8m dropping and ground impact.
| Performance Parameters | |
| Image sensor | COMS |
| Resolution | 1280x800/640x480 pixels |
| CPU | ARM 32 bit |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: QR code, PDF417, Data Matrix, Maxicode, Aztec, etc. |
| Scan Angle | ±360°, ±65°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| LCD Display | 2.8 inch TFT color LCD, 240x320 resolution |
| Keyboard | 23 Keys |
| Processor | 32 bit high-speed ARM CPU |
| Memory | 16MB |
| Battery | Built-in 1800mAh (charging time is 4.5h) |
| Current | 100mA(standby), 200mA (working) |
| Work frequency | 2.4GHz |
| Data communication distance | 100m(2.4GHz) (open area) |
| Physical Parameters | |
| Over dimension | L X W X H (170x60x29mm) |
| Weight | 165g (include battery and exclude wire) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
