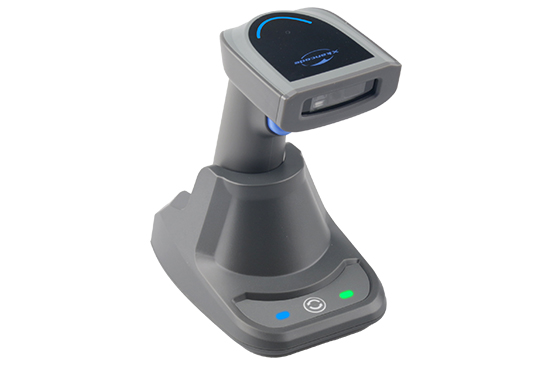

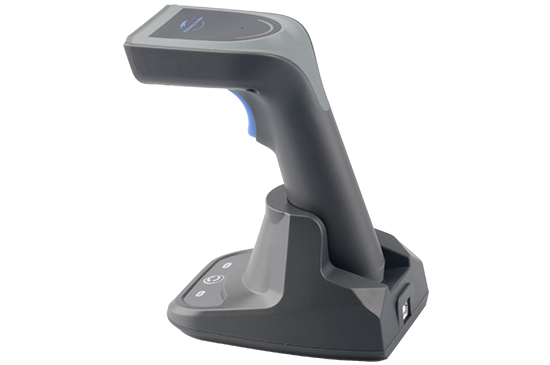

K2-BGC with professional high-performance CMOS scan engine, and take 2.4GHz and Bluetooth wireless technology. Easily read printed and on-screen 1D and 2D symbologies, It designed for retail, logistics, manufacturing, healthcare, warehouse, etc.
Back to list >>
Professional Scanning Module
High performance scanning module, easily decode all common 1D and 2D symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Easily Switching Two Wireless Modes
2.4GHz wireless technology and Bluetooth connection , take BT connection if the connected device without USB interface, such as smart phone, ipad, PDA, POS,etc
Super Easy Operation and Compatibility
Compatible with multiple language and keyboard layout, work well with Android, Linux, Mac, Windows and other operating system.
Ultra-long Distance Data Transmission
150m(2.4GHz) and 30m(Bluetooth) long distance data transmission, supports automatic frequency modulation and inventory mode, and has 350KB memory to save data information..
Durability and Sealing Performance
IP54 sealing performance, and bear the height of 1.5m dropping and ground impact.
| Performance Parameters | |
| Light source | 617nm for aiming, and 5600K LED for lighting |
| Resolution | 640x480/1280x800 pixels |
| Image sensor | CMOS |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: PDF417, Micro PDF417, Data Matrix, QR, Micro QR, Aztec, etc. |
| Scan Angle | ±360°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Memory | 350KB(Store over 20,000 barcode data) |
| Battery | 2000mAh (charging time is 5h) |
| Current and voltage | 35mA(standby), 220mA (working), 5 VDC ±10% |
| Work frequency | 2.4GHz |
| Data communication distance | 150m(2.4GHz) , 30m (Bluetooth) (open area) |
| Setting method | Scan configuration barcode |
| Physical Parameters | |
| Over dimension | L*W*H (159.2x63.5x85mm)(Scanner), 123x88x70.mm(Cradle) |
| Weight | 170g (excluding wire)(Scanner), 110g (Cradle) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.5 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
