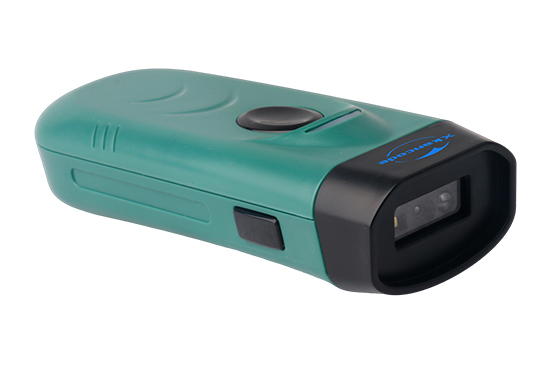

PT1-BG adopts professional 1D CCD scan engine in combination with 2.4GHz and Bluetooth wireless data communication technology, supporting stable and reliable 150 meters long distance of data communication.
Back to list >>
Powerful Endurance Ability

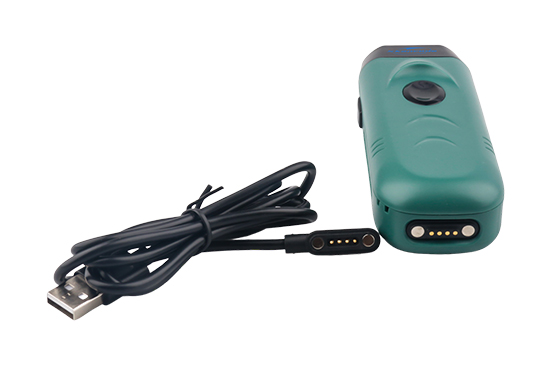

1200mAh rechargeable polymer lithium battery, make device could continuously work(1 scanning/s) for more than 16 hours with the fully charged. Take durable 4pin Pogopin Magnetic Charging Port.

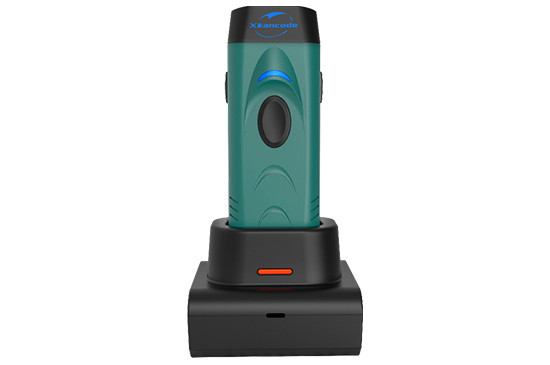

Two Wireless Modes Switching
2.4GHz wireless technology and Bluetooth connection , take BT connection if the connected device without USB interface, such as smart phone, ipad, PDA, POS, etc.

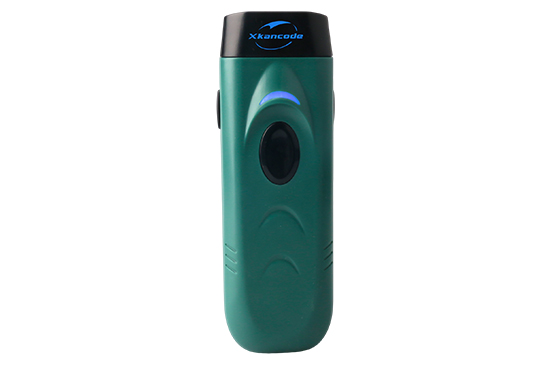

Convenient and Comfortable Operation
Portable and ergonomics design, users could put it in pocket, improving work efficiency and also convenient for long hours of usage.
Ultra-long Distance Transmission
2.4GHz (150 meters) and Bluetooth (30 meters) long distance data transmission, supports automatic frequency modulation and inventory mode.
Professional Scanning Module
High performance and superior resolution 1600 pixels scanning module, easily decode one-dimension barcode, including low printed contrast rate, high density and damaged barcode.
| Performance Parameters | |
| Image sensor | Linear 1D CCD image |
| Light source | 632nm visible red light |
| Decode speed | 300 times/s |
| Resolution | 1600 pixels |
| Decode capability | UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. |
| Scan Angle | ±50°, ±65°, ±55°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Depth of field | 20-500mm |
| Prompt mode | Buzzer, LED indicator light |
| Trigger mode | Manual, Continuous automatic scan |
| Memory | 350KB(Store over 20,000 barcode data) |
| Battery | 1200mAh (charging time is 3.5h) |
| Current | 45mA(standby), 85mA (working), 5 VDC ±10% |
| Work frequency | 2.4GHz |
| Data communication distance | 150m(2.4GHz) , 30m (Bluetooth) (open area) |
| Physical Parameters | |
| Over dimension | L X W X H (130.9x45.4x33.3mm) |
| Weight | 88g (include battery and exclude wire) |
| Charging cable length | 1.0m |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
