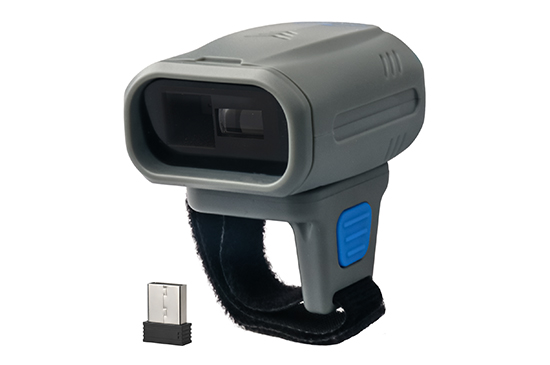

WR1-BG adopts professional CCD scan engine in combination with 2.4GHz and Bluetooth wireless data communication technology. It has flash memory to save over 20,000 barcode data, supporting stable and reliable long distance of data communication.
Back to list >>
Ultra-long Distance Transmission
2.4GHz (50 meters) and Bluetooth (30 meters) long distance data transmission, supports automatic frequency modulation and inventory mode.
Optional Two Modes Switching
2.4GHz wireless technology and Bluetooth connection, , take BT connection if the connected device without USB interface, such as smart phone, ipad, PDA, POS and other devices.
Convenient and Comfortable Operation
Wearable and ergonomics design, boost work efficiency and convenient for long hours of usage.
Powerful Endurance Ability

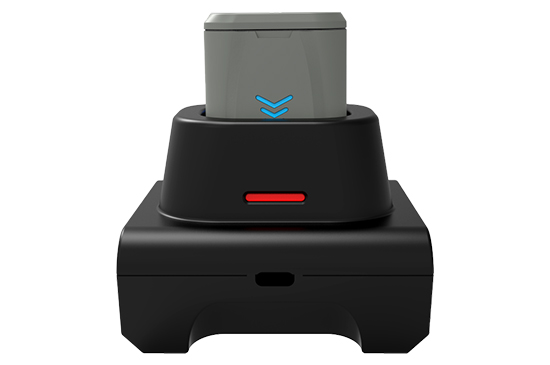

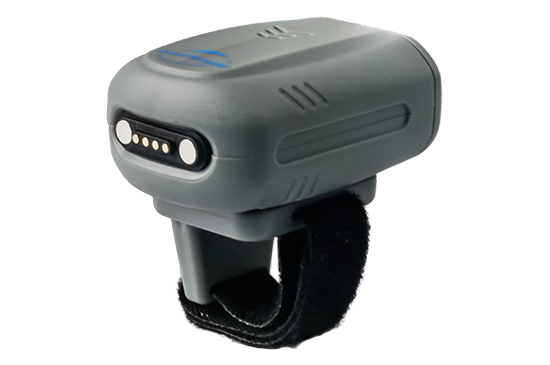

450mAh rechargeable polymer lithium battery, make device could continuously work for more than 8 hours with the fully charged. Take durable 4pin Pogopin Magnetic Charging Port.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.8m dropping and ground impact.
| Performance Parameters | |
| Light source | 632nm |
| Decode speed | 300 times/s |
| Resolution | 1600 pixles |
| Decode capability | UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. |
| Scan Angle | ±50°, ±65°, ±55°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Depth of field | 20-400mm |
| Prompt mode | Buzzer, LED indicator light |
| Trigger mode | Manual, Continuous automatic scan |
| Memory | 350KB(Store over 20,000 barcode data) |
| Battery | 450mAh (charging time is 1.5h) |
| Current | 45mA(standby), 90mA (working) |
| Work frequency | 2.4GHz |
| Data communication distance | 50m(2.4GHz) , 30m (Bluetooth) (open area) |
| Physical Parameters | |
| Over dimension | L X W X H (55.7x38x50.9mm) |
| Weight | 43.5g (include battery and exclude wire) |

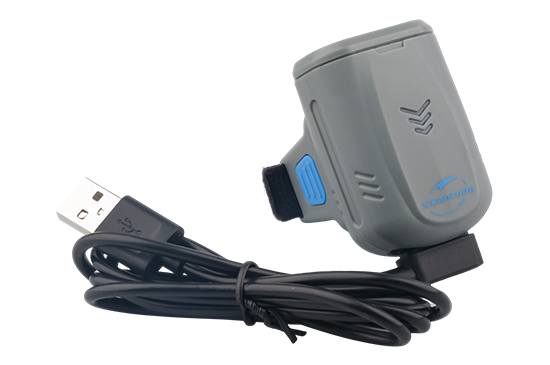

| Charging cable length | 1.0m |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
