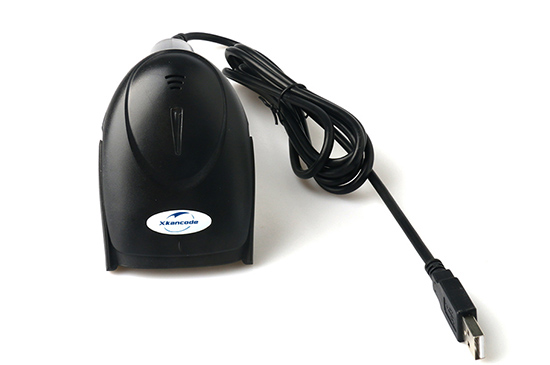

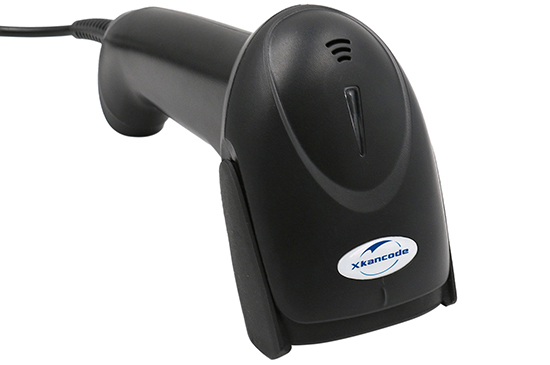

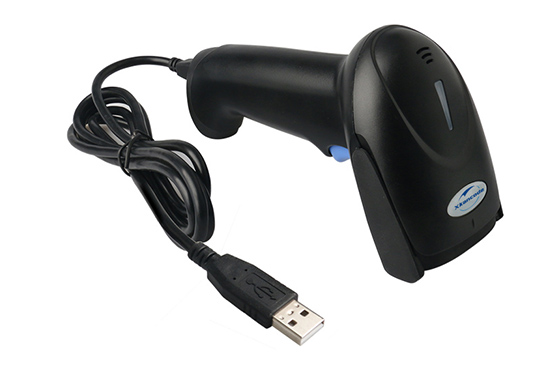

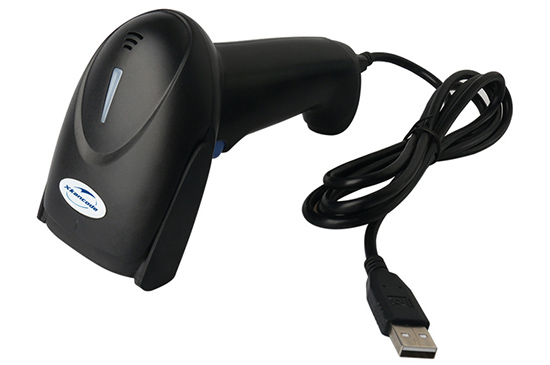

    Durable 1D CCD Barcode Scanner

    Model:B1

    B1 with professional high-performance CCD scan engine, support read printed and on-screen 1D barcode. It designed for retail, logistics, manufacturing, healthcare, warehouse, etc.

    Back to list >>

    Long Service Life

    Scan button with over 30 million times operation, and adopted ultra low power consumption.


    Excellent Identification Ability

    High performance scanning module, easily decode all common one-dimension barcode.


    Convenient and Comfortable Operation

    Fashionable and ergonomics design, boost work efficiency and convenient for long hours of usage, compatible with Android, Linux, Mac, Windows and other operating system.


    High Quality

    Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.


    Industrial Grade Durability

    IP54 industrial grade, and bear the height of 1.8m dropping and ground impact.


    Performance Parameters
    Light sourceVisible red light emitting diodes(610-640nm)
    Image sensorLinear CCD
    Decoding speed≥300 times/s
    Image sensorLinear CCD
    Decode capability

    UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar,   MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc.

    Scan Angle±45°, ±60°, ±60°(Roll, Skew, Pitch)
    Scan precision≥4mil
    Print contrast20%
    Prompt modeBuzzer, LED indicator light
    InterfaceUSB, USB-COM, RS232 (optional)
    Trigger modeManual, Continuous automatic scan and auto sensing scanning(optional)
    Setting method

    Scan configuration barcode

    Current and voltage30mA(standby), 80mA (working), 5 VDC ±10%
    Physical Parameters
    Over dimensionL X W X H (150x70x95mm)
    Weight160g (including wire)
    MaterialABS+PC environmentally friendly materials

    Environmental Parameters

    Working temperature-20°C to 50°C
    Storage temperature-40°C to 60°C
    Anti-dropWithstand drop from 1.8 m to concrete floor
    Humidity5% to 95% RH
    IP gradeIP54
    Circumstance luminance0-100,000Lux
