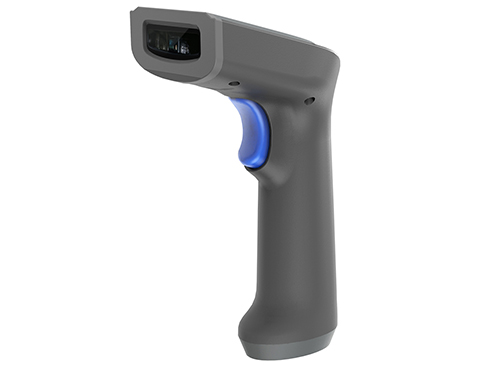

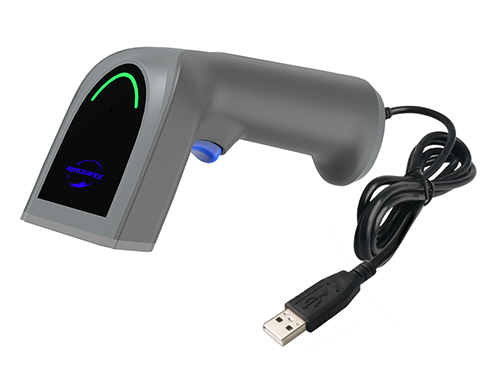

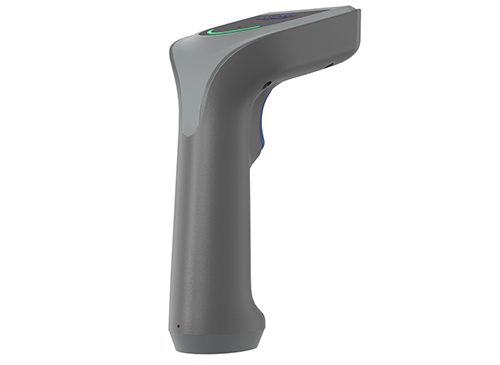

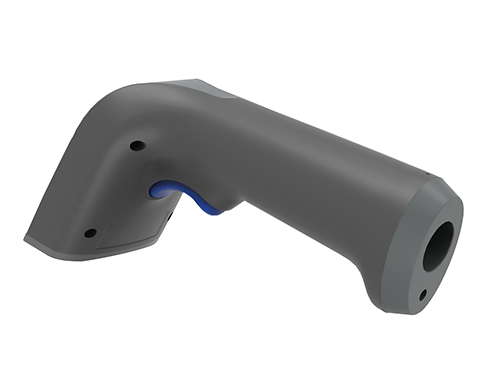

K3 with professional high-performance Laser scan engine, support read printed 1D barcode. It designed for retail, logistics, manufacturing, healthcare, warehouse, etc.
Back to list >>
Long Service Life
Scan button with over 30 million times operation, and adopted ultra low power consumption.
Excellent Identification Ability
High performance scanning module, easily decode all common one-dimension barcode.
Convenient and Comfortable Operation
Fashionable and ergonomics design, boost work efficiency and convenient for long hours of usage, compatible with Android, Linux, Mac, Windows and other operating system.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.8m dropping and ground impact.
| Performance Parameters | |
| Light source | Laser |
| Decoding speed | ≥300 times/s |
| Decode capability | UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. |
| Scan Angle | ±40°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥3mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM, RS232 (optional) |
| Trigger mode | Manual, Continuous automatic scan |
| Setting method | Scan configuration barcode |
| Current and voltage | 45mA(standby), 110mA (working), 5 VDC ±10% |
| Physical Parameters | |
| Over dimension | L X W X H (159.2x63.5x85mm) |
| Weight | 126g (excluding wire) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
