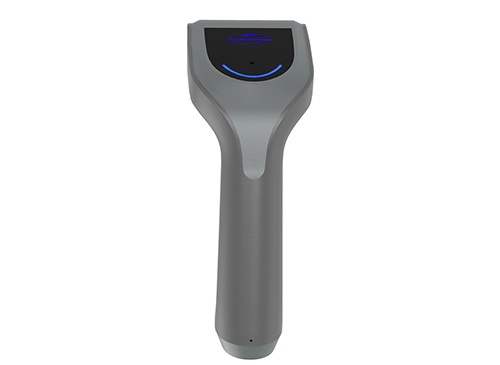

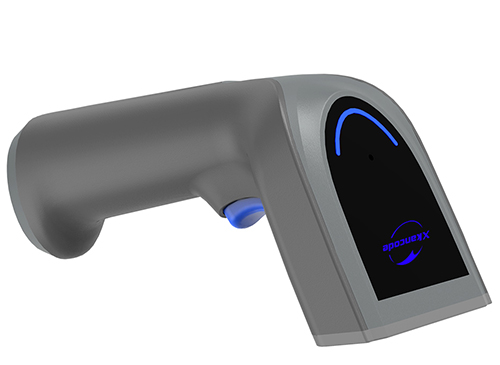

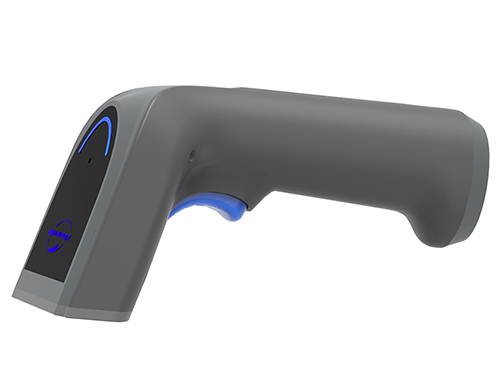

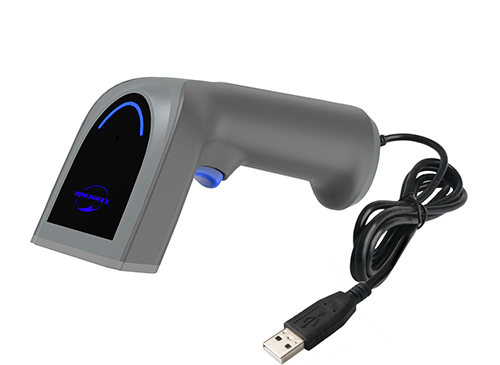

K2 is an industrial grade 2D optical image scanner. It delivers industrial leading performance and durability in Retail, Logistics, Manufacturing, Warehouse and other fields of applications.
Back to list >>
Excellent Identification Ability
High performance scanning module, easily decode all common 1D and 2D symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Long Service Life
Scan button with over 30 million times operation, and adopted ultra low power consumption.
Super Easy Operation and Compatibility
Compatible with multiple language and keyboard layout, work well with Android, Linux, Mac, Windows and other operating system.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.8m dropping and ground impact.
| Performance Parameters | |
| Light source | (625±10nm) for aiming, and 5600K LED for lighting |
| Resolution | 640x480/1280x800 pixels |
| Image sensor | CMOS |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: PDF417, Micro PDF417, Data Matrix, QR, Micro QR, Aztec, etc. |
| Scan Angle | ±360°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM, RS232(optional) |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Setting method | Scan configuration barcode |
| Current and voltage | 55mA(standby), 200mA (working), 5 VDC ±10% |
| Physical Parameters | |
| Over dimension | L X W X H (159.2x63.5x85mm) |
| Weight | 126g (excluding wire) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
