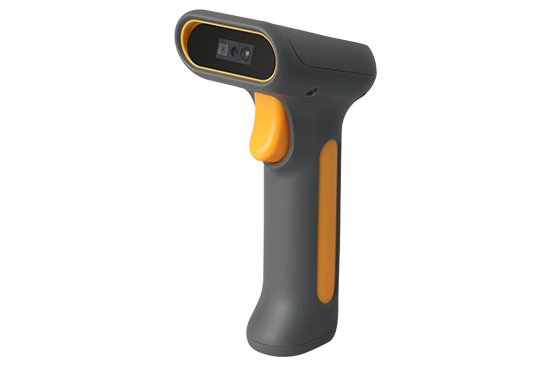

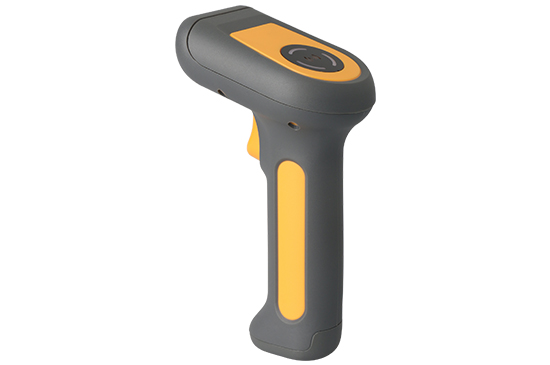

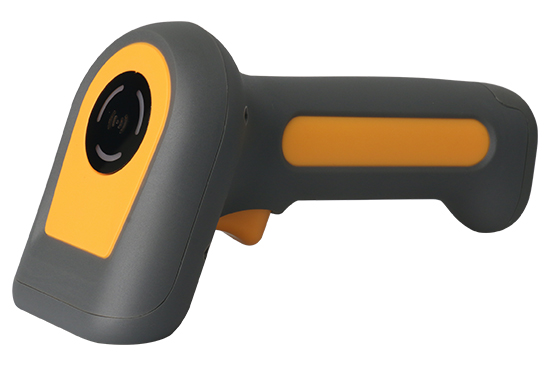

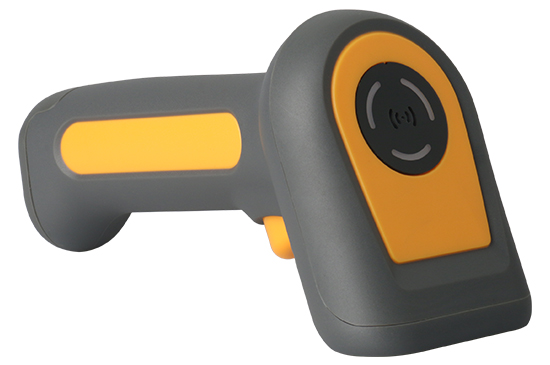

    Industrial 2D Barcode Scanner

    Model:I2

    I2 is an industrial grade 2D optical image scanner. It delivers industrial leading performance and durability in Retail, logistics, Manufacturing, Medical store, Warehouse and other fields of applications.

    Back to list >>

    Excellent Identification Ability

    High performance scanning module, easily decode all common one-dimension barcode.


    Long Service Life

    Scan button with over 30 million times operation, and adopted ultra low power consumption.


    Convenient and Comfortable Operation

    Fashionable and ergonomics design, boost work efficiency and convenient for long hours of usage.


    High Quality

    Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.


    Industrial Grade Durability

    IP54 industrial grade, and bear the height of 1.8m dropping and ground impact.


    Performance Parameters
    Light sourceVisible red light emitting diodes(610-640nm)
    Image sensorCMOS. Resolution: 1280x1024 pixels
    Decode capability

    1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar,   MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc.

    2D: PDF417, Data Matrix, QR, Aztec, Maxicode, etc.

    Scan Angle±360°, ±60°, ±60°(Roll, Skew, Pitch)
    Scan precision≥3mil
    Print contrast20%
    Prompt modeBuzzer, LED indicator light
    InterfaceUSB, USB-COM
    Trigger modeManual, Continuous automatic scan and auto sensing scanning(optional)
    Setting method

    Scan configuration barcode

    Current and voltage35mA(standby), 260mA (working), 5 VDC ±10%
    Physical Parameters
    Over dimensionL X W X H (153.2x66x110.5mm)
    Weight155g(Scanner); 310g(Scanner with cable and package)
    MaterialABS+PC environmentally friendly materials

    Environmental Parameters

    Working temperature-20°C to 50°C
    Storage temperature-40°C to 60°C
    Anti-dropWithstand drop from 1.8m to concrete floor
    Humidity5% to 95% RH
    IP gradeIP54
    Circumstance luminance0-100,000Lux
