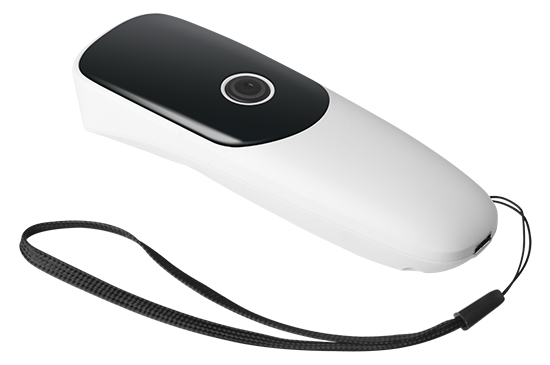

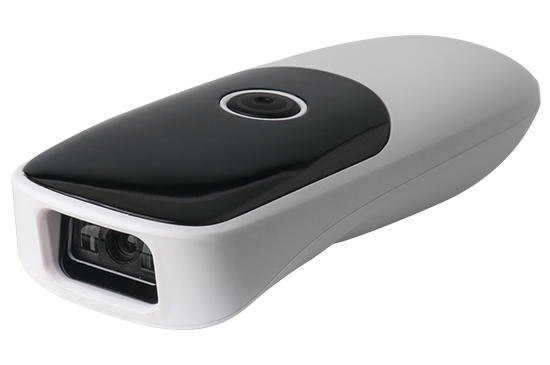

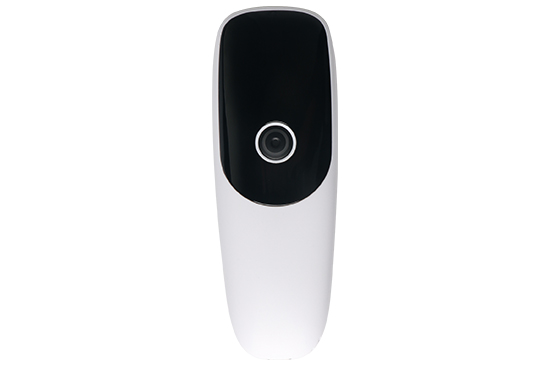

PF2-BG adopts professional 2D scan engine in combination with 2.4GHz and Bluetooth wireless data communication technology, supporting stable and reliable long distance of data communication.
Back to list >>
Powerful Endurance Ability
1200mAh rechargeable polymer lithium battery, make device could continuously work(1 scanning/s) for more than 10 hours with the fully charged.
Two Wireless Modes Switching
2.4GHz wireless technology and Bluetooth connection , take BT connection if the connected device without USB interface, such as smart phone, ipad, PDA, POS and other devices.
Convenient and Comfortable Operation
Easy compatible with multiple language, keyboard layout and operating system. Portable and ergonomics design, users could put it in pocket, improving work efficiency and also convenient for long hours of usage.
Ultra-long Distance Transmission
2.4GHz (150 meters) and Bluetooth (30 meters) long distance data transmission, supports automatic frequency modulation and inventory mode.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.8m dropping and ground impact.
| Performance Parameters | |
| Image sensor | COMS |
| Resolution | 1280x800/640x480 pixels |
| CPU | ARM 32 bit |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: QR code, PDF417, Data Matrix, Maxicode, Aztec, etc. |
| Scan Angle | ±360°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Depth of field | 20-500mm |
| Prompt mode | Buzzer, LED indicator light |
| Trigger mode | Manual, Continuous automatic scan |
| Memory | 350KB(Store over 20,000 barcode data) |
| Battery | 1200mAh (charging time is 3.5h) |
| Current | 60mA(standby), 160mA (working) |
| Work frequency | 2.4GHz |
| Data communication distance | 150m(2.4GHz) , 30m (Bluetooth) (open area) |
| Physical Parameters | |
| Over dimension | L X W X H (130x47.5x24mm) |
| Weight | 70g (include battery and exclude wire) |
| Charging cable length | 0.8m |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
