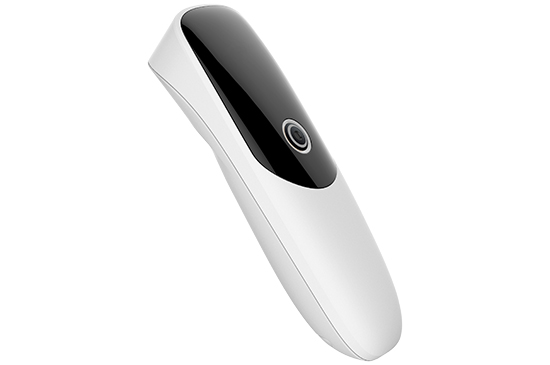

    Portable 1D Wireless CCD Scanner

    Model:PF1-BG

    PF1-BG adopts professional CCD scan engine in combination with 2.4GHz and Bluetooth wireless data communication technology, supporting stable and reliable long distance of data communication.

    Back to list >>

    Powerful Endurance Ability

    1200mAh rechargeable polymer lithium battery, make device could continuously work(1 scanning/s) for more than 16 hours with the fully charged.


    Two Wireless Modes Switching

    2.4GHz wireless technology and Bluetooth connection , take BT connection if the connected device without USB interface, such as smart phone, ipad, PDA, POS, etc.

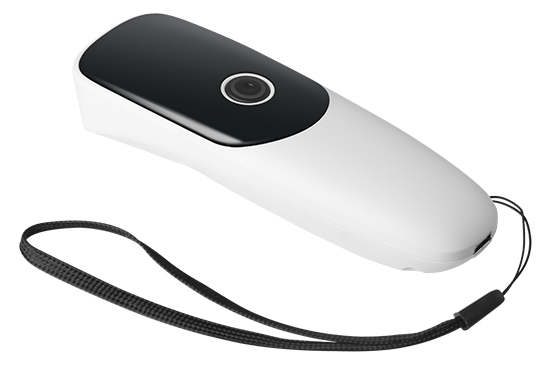

    Convenient and Comfortable Operation

    Portable and ergonomics design, users could put it in pocket, improving work efficiency and also convenient for long hours of usage.

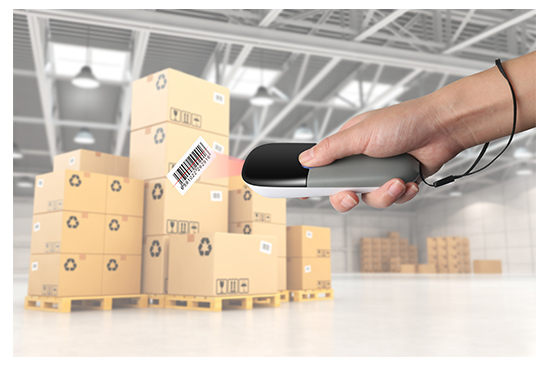

    Ultra-long Distance Transmission

    2.4GHz (150 meters) and Bluetooth (30 meters) long distance data transmission, supports automatic frequency modulation and inventory mode.

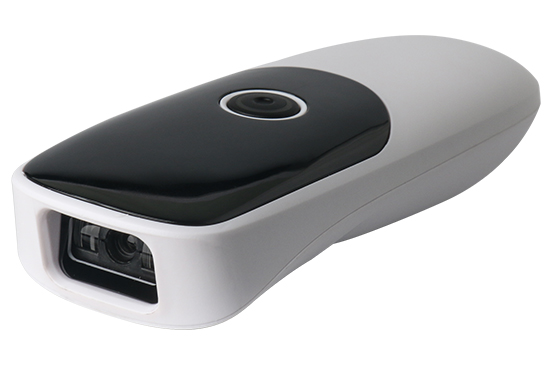

    Professional Scanning Module

    High performance and superior resolution(2500 pixles) scanning module, easily decode one-dimension barcode, including low printed contrast rate, high density and damaged barcode.


    Performance Parameters
    Image sensorLinear 1D CCD image
    Light source 632nm visible red light
    Decode speed300 times/s
    Resolution2500 pixels
    Decode capability

    UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc.

    Scan Angle±45°, ±60°, ±60°(Roll, Skew, Pitch)
    Scan precision≥4mil
    Print contrast20%
    Depth of field30-600mm
    Prompt modeBuzzer, LED indicator light
    Trigger mode Manual, Continuous automatic scan
    Memory

    350KB(Store over 20,000 barcode data)

    Battery1200mAh (charging time is 3.5h)
    Current35mA(standby), 80mA (working),  5 VDC ±10%
    Work frequency2.4GHz
    Data communication distance150m(2.4GHz) , 30m (Bluetooth) (open area)
    Physical Parameters
    Over dimensionL X W X H (130x47.5x24mm)
    Weight70g (include battery and exclude wire)
    Charging cable length0.8m
    MaterialABS+PC environmentally friendly materials

    Environmental Parameters

    Working temperature-20°C to 50°C
    Storage temperature-40°C to 60°C
    Anti-dropWithstand drop from 1.8m to concrete floor
    Humidity5% to 95% RH
    IP gradeIP54
    Circumstance luminance0-100,000Lux
