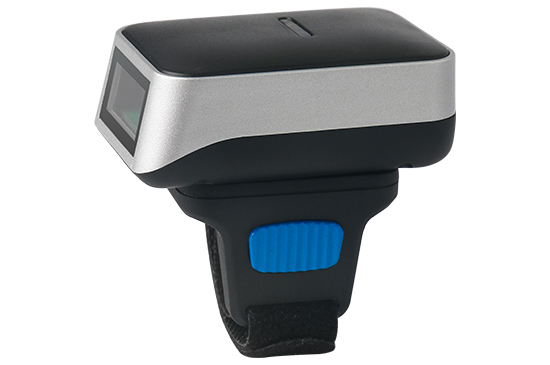

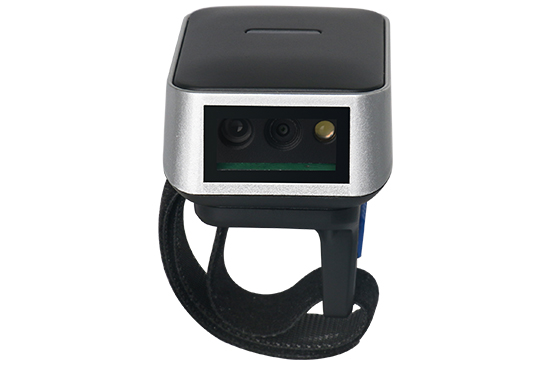

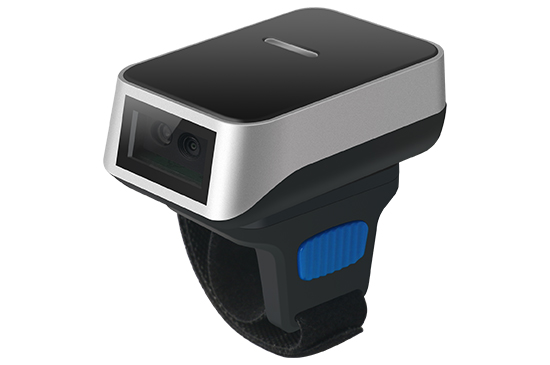

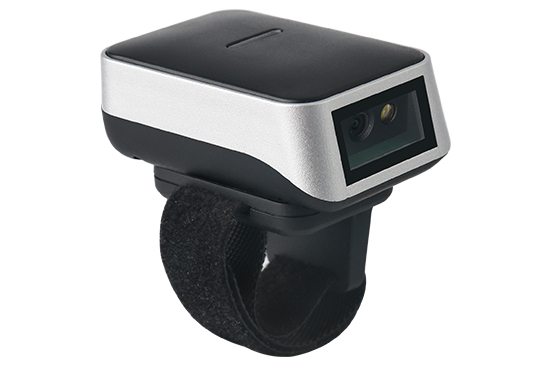

RS2-BG adopts professional image scan engine in combination with 2.4GHz and Bluetooth wireless data communication technology. It has 16MB flash memory to save data information, supporting stable and reliable long distance of data communication.
Back to list >>
Ultra-long Distance Transmission
2.4GHz (50 meters) and Bluetooth (30 meters) long distance data transmission, supports automatic frequency modulation and inventory mode.
Optional Two Modes Switching
2.4GHz wireless technology and Bluetooth connection, , take BT connection if the connected device without USB interface, such as smart phone, ipad, PDA, POS and other devices.
Convenient and Comfortable Operation
Easy compatible with multiple language, keyboard layout and operating system. Wearable and ergonomics design, boost work efficiency and convenient for long hours of usage.
Excellent Identification Ability
High performance scanning module, easily decode all common one and two dimension symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.8m dropping and ground impact.
| Performance Parameters | |
| Image Sensor | CMOS |
| Resolution | 1280x800 |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: QR code, Micro QR, PDF417, Micro PDF417, Data Matrix, Hanxin, etc. |
| Scan Angle | ±360°, ±65°, ±55°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Depth of field | 20-500mm |
| Prompt mode | Buzzer, LED indicator light |
| Trigger mode | Manual, Continuous automatic scan |
| Interface | Type-C |
| Memory | 16MB |
| Battery | 360mAh (charging time is 1.5h) |
| Current | 60mA(standby), 220mA (working) |
| Work frequency | 2.4GHz |
| Data communication distance | 50m(2.4GHz) , 30m (Bluetooth) (open area) |
| Physical Parameters | |
| Over dimension | L X W X H (51.3x35x50mm) |
| Weight | 35g (include battery and exclude wire) |
| Charging cable length | 1.0m |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
