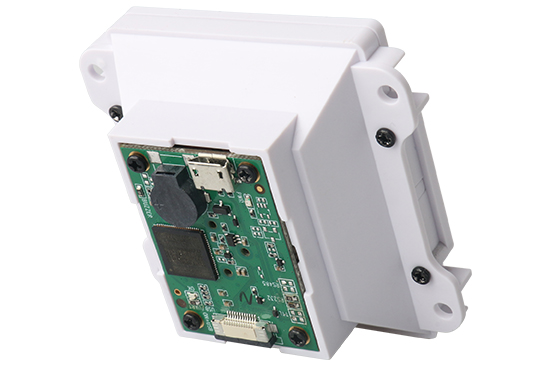

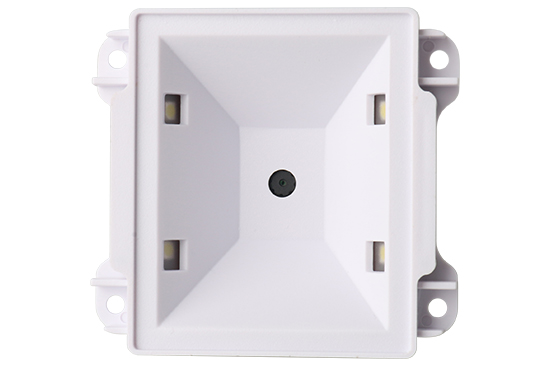

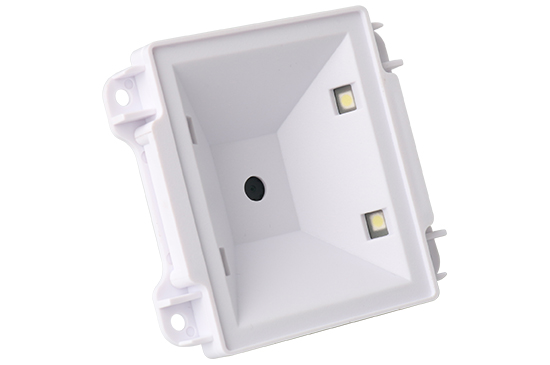

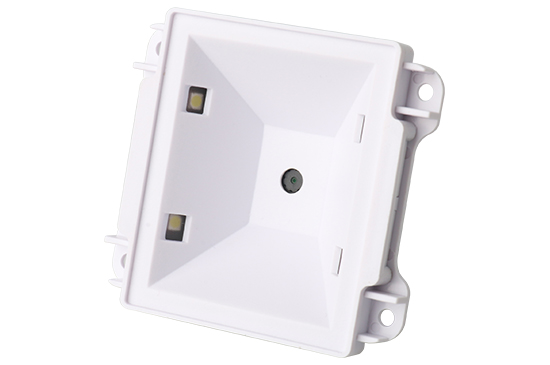

EP20 2D image embedded barcode scanner, integrated with our core 2D technology, has superior international advanced 2D decoding performance, with excellent performance in reading screen and printed barcode.
Back to list >>
Excellent Identification Ability
High performance scanning module, easily decode all common one and two dimension symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Super Easy Operation and Compatibility
Easy compatible with multiple language, keyboard layout and operating system, at the same time, provide USB and RS232 interface.
Customize service and easy embedded
Support customize interface, cable, and secondary development, fashionable and ergonomics design make it could embedded in multiple devices and industries.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.5m dropping and ground impact.
| Performance Parameters | |
| Light source | 6500K LED for lighting |
| Image sensor | CMOS |
| Resolution | 640x480 |
| Processor | ARM 32 bit |
| Decode capability | 1D: UPC/EAN, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, code 93, code11, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: QR code, Micro QR, PDF417, Data Matrix, Aztec, Maxicode etc. |
| Depth of filed | 10-350mm |
| Scan angle | ±360°, ±60°, ±60°(Roll, Skew, Pitch) |
| Field of view | 115°* 90° |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Data communication method | USB, TTL232 |
| Trigger mode | Auto sensing scanning, command trigger |
| Setting method | Scan configuration barcode |
| Current | 50mA(standby), 140mA (working), 5 VDC ±10% |
| Physical Parameters | |
| Over dimension | L X W X H (65.2x61x29mm) |
| Weight | 27g |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.5m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
