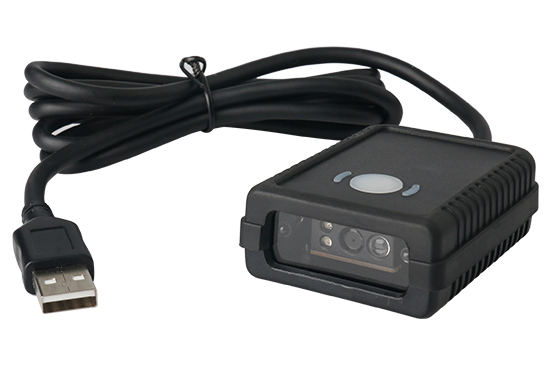

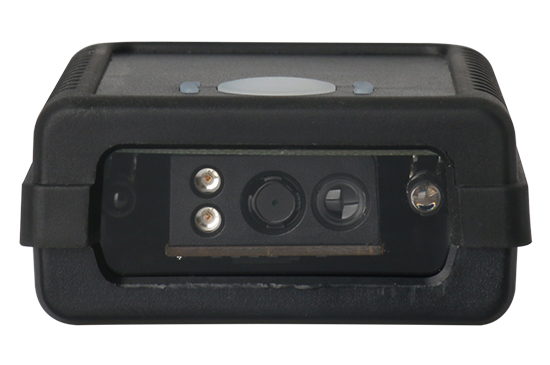

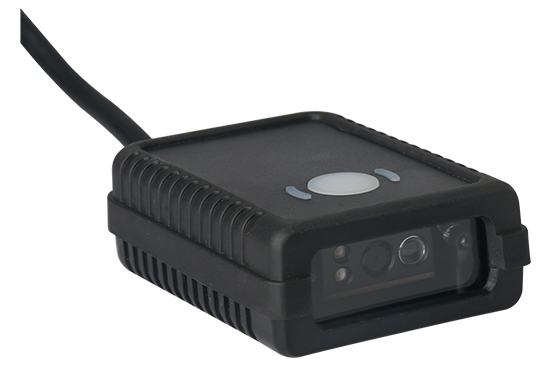

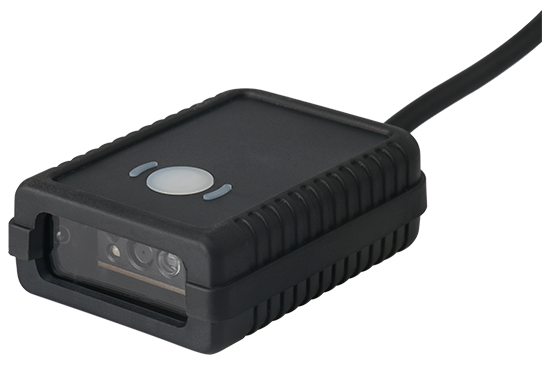

FS10 1D linear fixed barcode scanner, integrated with our core CCD technology, has superior international advanced 1D decoding performance, with excellent performance in reading screen and printed barcode.
Back to list >>
Excellent Identification Ability
High performance scanning module, easily decode all common one-dimension barcode, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Super Easy Operation and Compatibility
Easy compatible with multiple language, keyboard layout and operating system, at the same time, provide USB and RS232 interface.
Customize service and easy embedded
Support customize interface, cable, and secondary development, fashionable and ergonomics design and mini dimension make it could applied in multiple industries.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.8m dropping and ground impact.
| Performance Parameters | |
| Light source | Visible red light emitting diodes(610-640nm) |
| Image sensor | CCD |
| Resolution | 2500 |
| Decoding speed | ≥300 times/s |
| Decode capability | UPC/EAN, ISBN/ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 32, code 93, code11, Interleaved 2of 5, Matrix 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. |
| Scan angle | ±35°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Data communication method | USB, RS232 |
| Trigger mode | Auto-induction scanning |
| Setting method | Scan configuration barcode |
| Current | 25mA(standby), 80mA (working) |
| Physical Parameters | |
| Over dimension | L X W X H (70x51x23mm) |
| Weight | 100g |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
