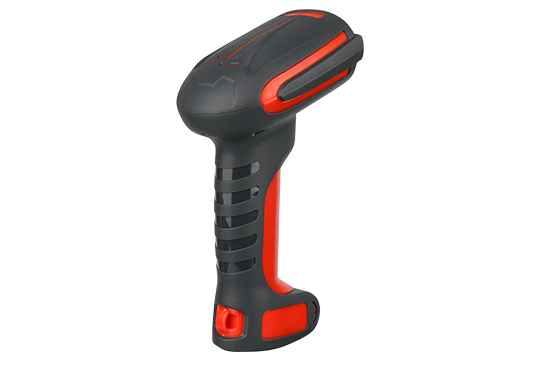

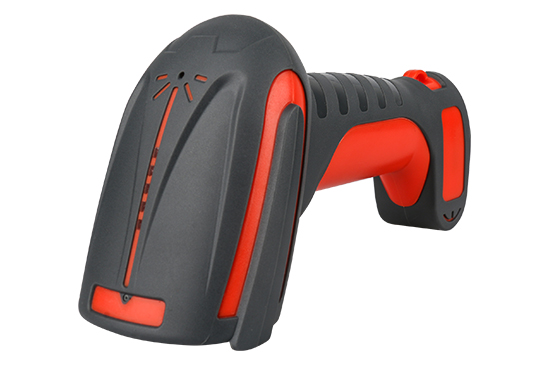

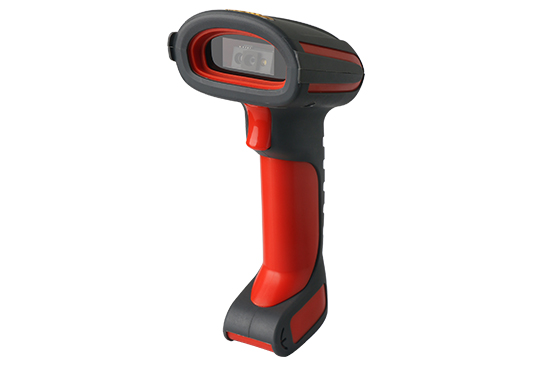

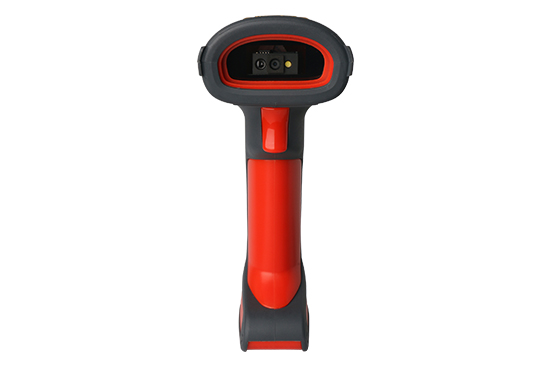

R2 is an industrial grade 2D optical image scanner, with IP65 sealing performance, and makes it suitable for harsh application environments, such as manufacturing workshop, Logistics, cold chain industry, warehouse, etc.
Back to list >>
Excellent Identification Ability
High performance scanning module, easily decode all common 1D and 2D symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Industrial Durability and Sealing Performance
IP65 industrial sealing grade, and bear the height of 2.5m dropping and ground impact.
Super Easy Operation and Compatibility
Compatible with multiple language and keyboard layout, work well with Android, Linux, Mac, Windows and other operating system.
Providing Multiple Scanning Method
Manual scanning, continuous scanning with configurable scanning time interval and automatic induction scanning to meet various application scenarios.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell and TPU materials covered almost whole device to protect it.
| Performance Parameters | |
| Light source | (625±10nm) for aiming, and 5600K LED for lighting |
| Resolution | 1280x800/1280x1024 |
| Image sensor | CMOS |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: PDF417, Micro PDF417, Data Matrix, QR, Micro QR, Aztec, etc. |
| Scan Angle | ±360°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥3mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM, RS232(optional) |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Setting method | Scan configuration barcode |
| Current and voltage | 50mA(standby), 170mA (working), 5 VDC ±10% |
| Physical Parameters | |
| Over dimension | L X W X H (184x74x93mm) |
| Weight | 290g (excluding wire) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 2.5m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP65 |
| Circumstance luminance | 0-100,000Lux |
