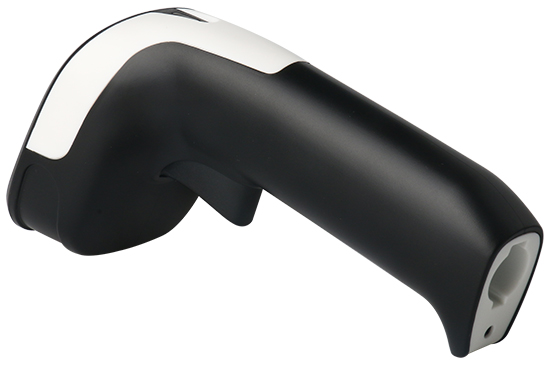

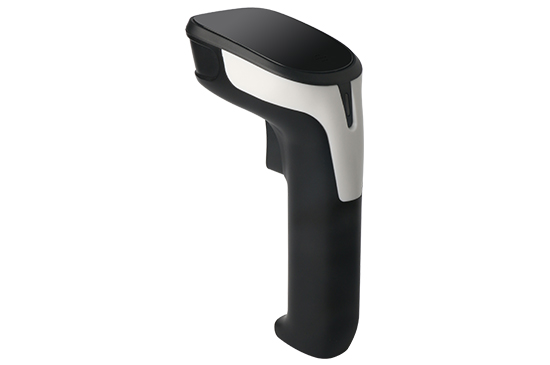

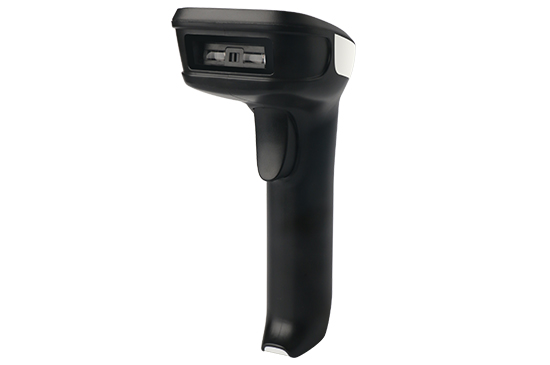

F2 is an industrial grade 2D optical image scanner with fashionable product appearance. It meets all requirements of Retail, Logistics, Manufacturing, Warehouse and other fields of applications.
Back to list >>
Excellent Identification Ability
High performance scanning module, easily decode all common 1D and 2D symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Fashionable and Ergonomics design
Fashionable product appearance and ergonomics design, make it perfect for retail, logistics and manufacturing, popular in supermarket and stores.
Super Easy Operation and Compatibility
Compatible with multiple language and keyboard layout, work well with Android, Linux, Mac, Windows and other operating system.
Providing Multiple Scanning Method
Manual scanning, continuous scanning with configurable scanning time interval and automatic induction scanning to meet various application scenarios.
Industrial Grade Durability
IP54 sealing grade, and bear the height of 1.8m dropping and ground impact.
| Performance Parameters | |
| Light source | (625±10nm) for aiming, and 5600K LED for lighting |
| Resolution | 640x480/1280x800 |
| Image sensor | CMOS |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: PDF417, Micro PDF417, Data Matrix, QR, Micro QR, Aztec, etc. |
| Scan Angle | ±360°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM, RS232(optional) |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Setting method | Scan configuration barcode |
| Current and voltage | 50mA(standby), 120mA (working), 5 VDC ±10% |
| Physical Parameters | |
| Over dimension | L X W X H (161x63x80mm) |
| Weight | 146g (excluding wire) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
