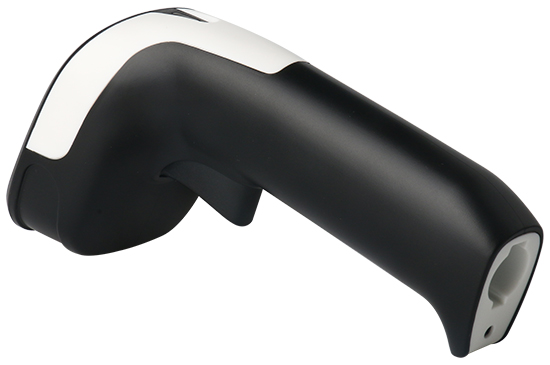

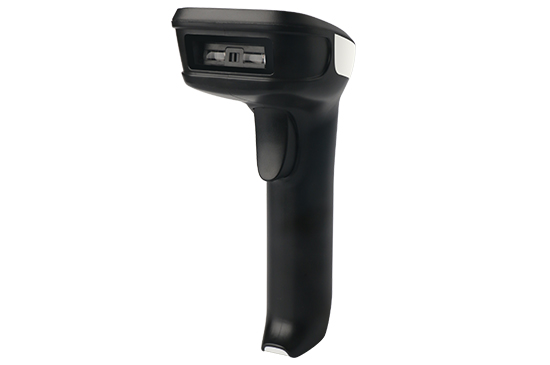

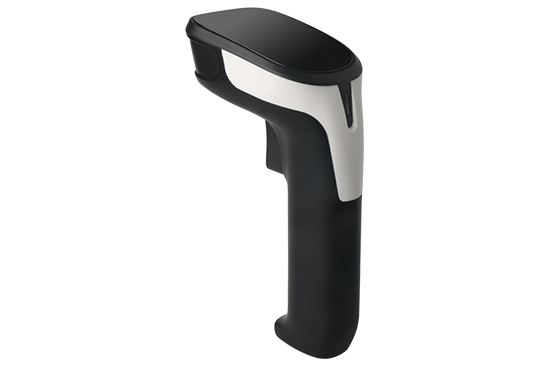

F1 with fashionable product appearance and professional high-performance CCD scan engine, support read printed and on-screen 1D barcode. It designed for retail, logistics, healthcare, warehouse and so on.
Back to list >>
Fashionable and Ergonomics design
Fashionable product appearance and ergonomics design, make it perfect for retail, logistics and manufacturing, popular in supermarket and stores.
Professional Scanning Module
High performance and superior resolution(2500) scanning module, easily decode one-dimension barcode, including low printed contrast rate, high density and damaged barcode.
Convenient and Comfortable Operation
Fast decoding speed improve work efficiency , easily compatible with Android, Linux, Mac, Windows and other operating system.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable, and practical shell to protect the device.
Industrial Durability and Sealing Performance
IP54 sealing performance, and bear the height of 1.8m dropping and ground impact.
| Performance Parameters | |
| Light source | 632nm visible red light |
| Resolution | 2500 |
| Image sensor | Linear CCD |
| Decoding speed | ≥300 times/s |
| Decode capability | UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. |
| Scan Angle | ±40°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM, RS232(optional) |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Setting method | Scan configuration barcode |
| Current and voltage | 40mA(standby), 80mA (working), 5 VDC ±10% |
| Physical Parameters | |
| Over dimension | L X W X H (161x63x80mm) |
| Weight | 147g (excluding wire) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.8 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
