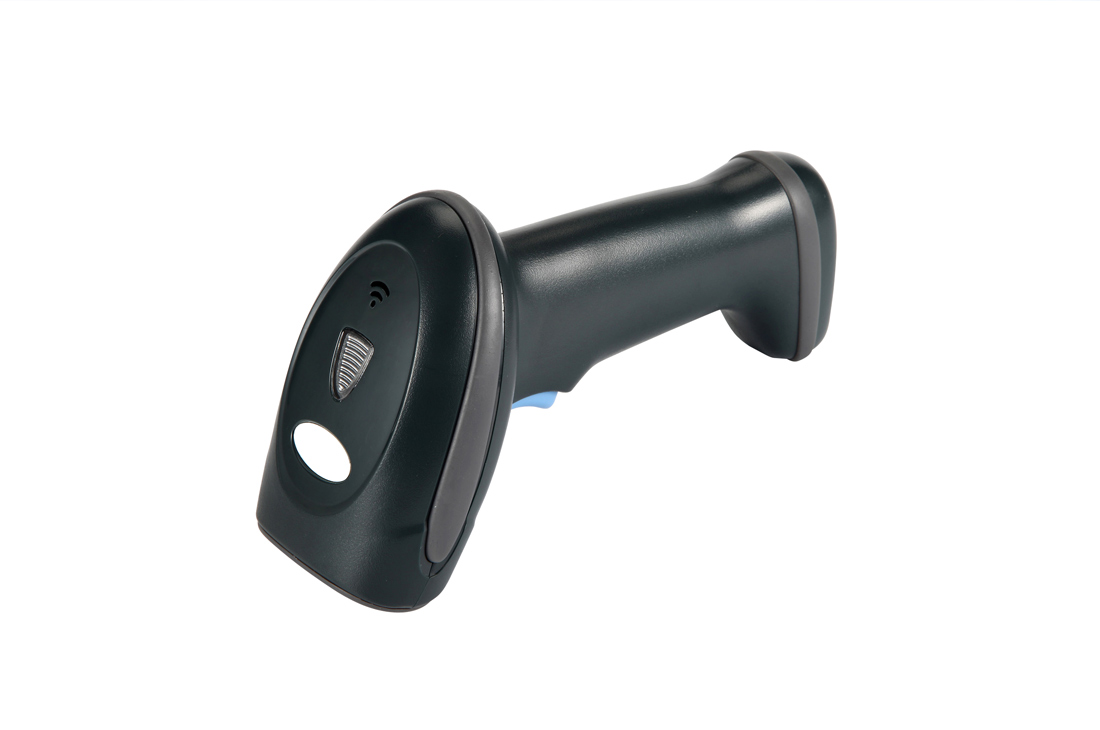

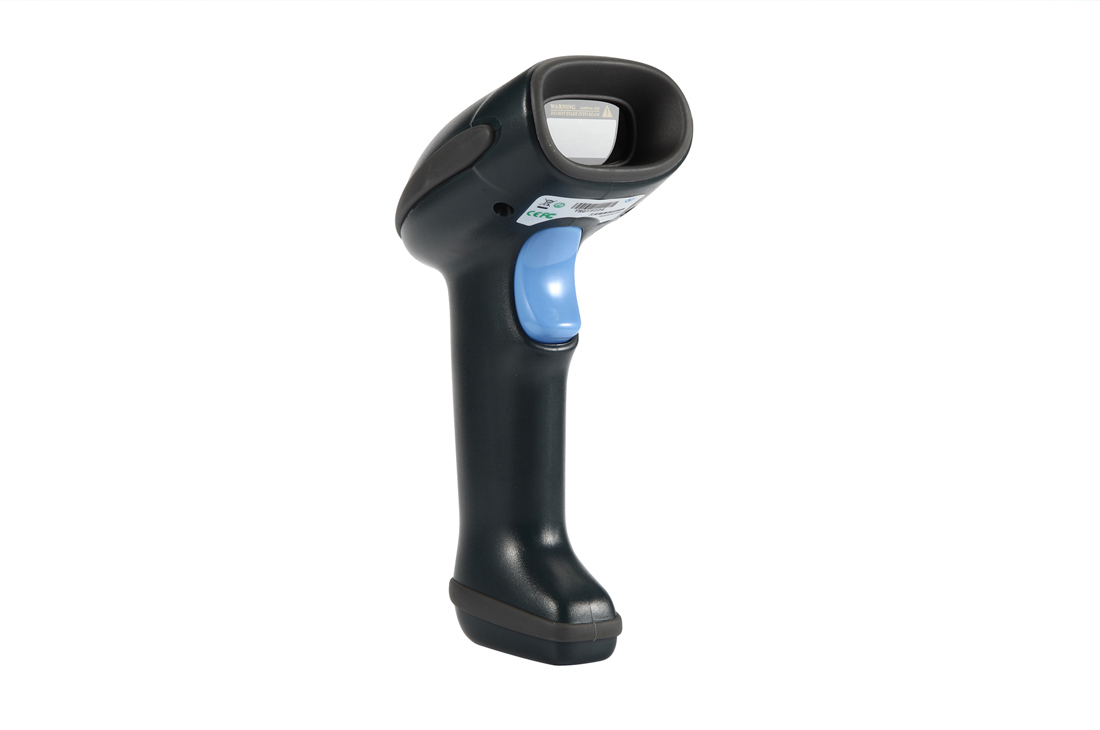

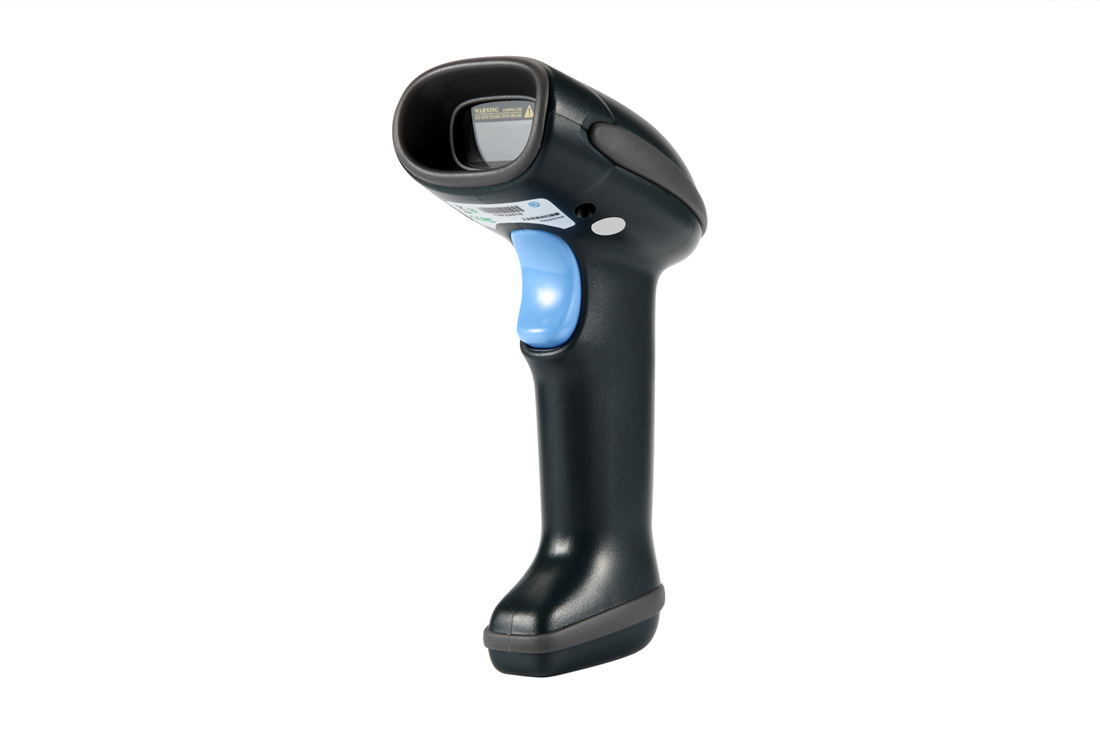

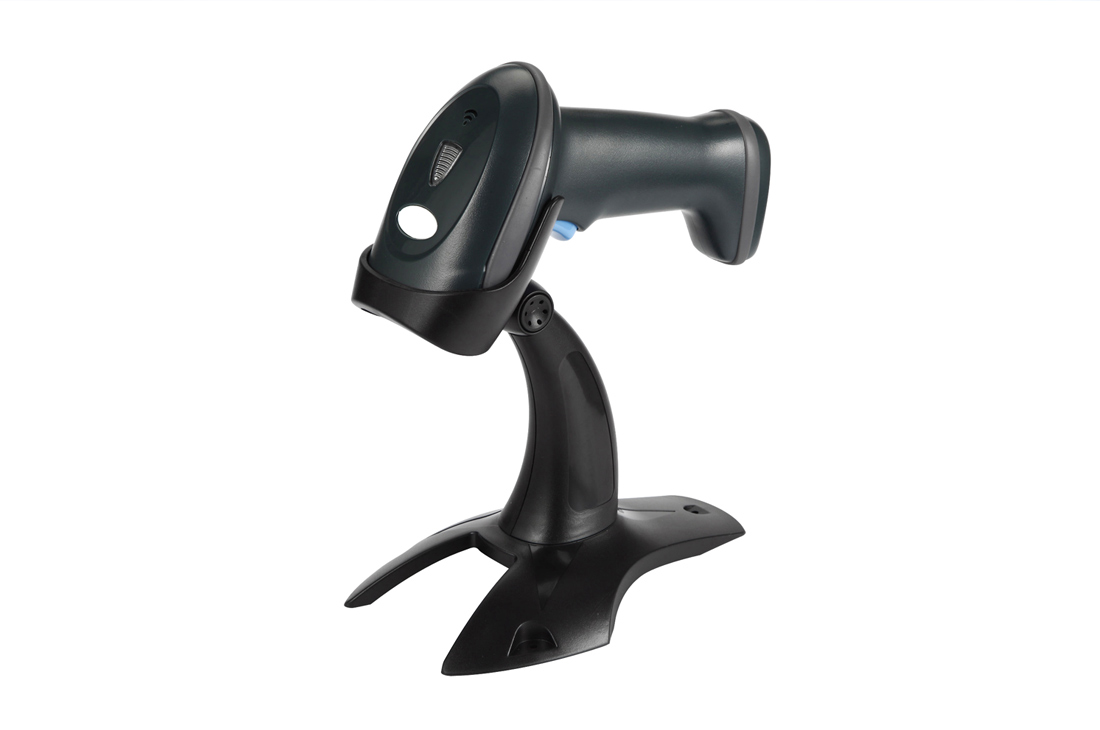

A2 is an industrial grade 2D optical image scanner. It delivers industrial leading performance and durability in Retail, logistics, Manufacturing, Medical store, Warehouse and other fields of applications.
Back to list >>
Excellent Identification Ability
High performance scanning module, easily decode all common one-dimension barcode.
Long Service Life
Scan button with over 30 million times operation, and adopted ultra low power consumption.
Convenient and Comfortable Operation
Fashionable and ergonomics design, boost work efficiency and convenient for long hours of usage.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 2m dropping and ground impact.
| Performance Parameters | |
| Light source | Visible red light emitting diodes(610-640nm) |
| Image sensor | CMOS |
| Decoding speed | ≥300 times/s |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: PDF417, Data Matrix, QR, Aztec, Maxicode, etc. |
| Scan Angle | ±360°, ±60°, ±55°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Setting method | Scan configuration barcode |
| Current and voltage | 35mA(standby), 160mA (working), 5 VDC ±10% |
| Physical Parameters | |
| Over dimension | L X W X H (102x73x182mm) |
| Weight | 172g |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 2m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
