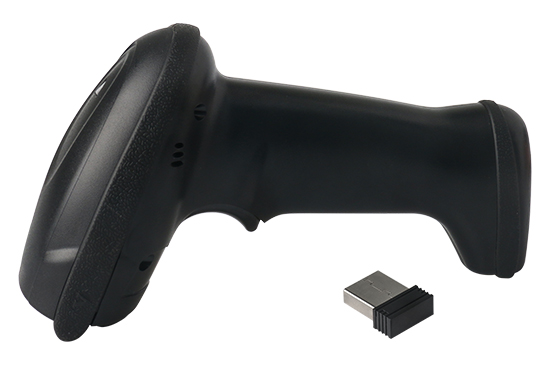

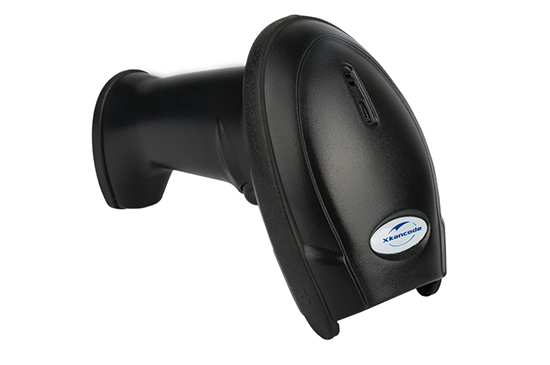

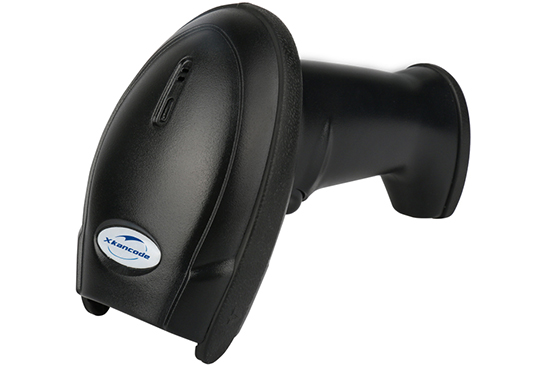

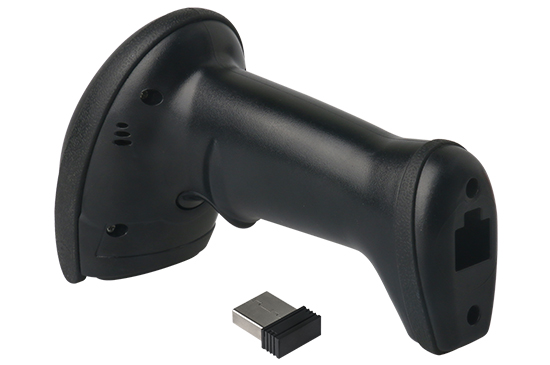

C3-G with high-performance Laser scan engine, and take 2.4GHz wireless technology, with 2.4GHz data receiver. It designed for retail, logistics, manufacturing, healthcare, warehouse, etc.
Back to list >>
Ultra-long Distance Data Transmission
150m long distance data transmission, supports automatic frequency modulation and inventory mode.
Professional Scanning Module
High performance and superior laser scanning module, easily decode one-dimension barcode, including low printed contrast rate, high density and damaged barcode.
Powerful Endurance Ability
1200mAh rechargeable polymer lithium battery, make device could continuously work for more than 30 hours with the fully charged.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Grade Durability
IP54 industrial sealing grade, and bear the height of 1.5m dropping and ground impact.
| Performance Parameters | |
| Light source | Laser |
| Decoding speed | ≥300 times/s |
| Decode capability | UPC/EAN, UPC/EAN with supplements, ISBN, ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 11, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. |
| Scan Angle | ±40°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥3mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM |
| Trigger mode | Manual, Continuous automatic scan |
| Memory | 512KB(Save over 40,000 barcode data) |
| Battery | 1200mAh (charging time is 4h) |
| Current and voltage | 30mA(standby), 160mA (working), 5 VDC ±10% |
| Work frequency | 2.4GHz |
| Data communication distance | 150m(open area) |
| Setting method | Scan configuration barcode |
| Physical Parameters | |
| Over dimension | L X W X H (175x72x100mm） |
| Weight | 210g |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.5 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
