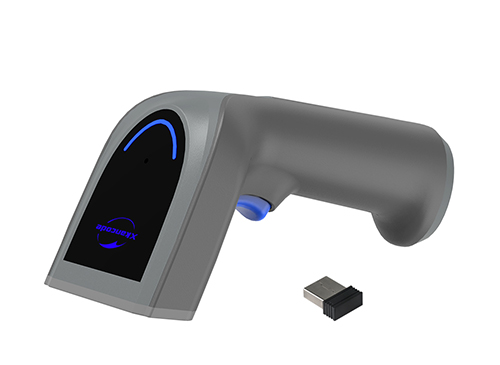

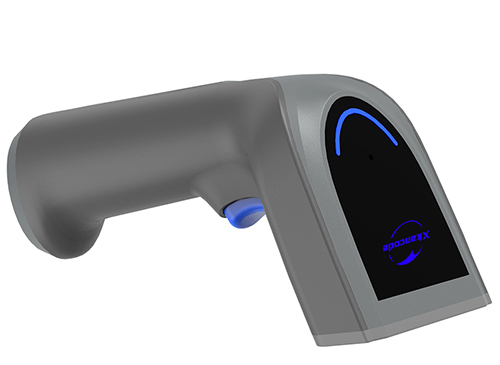

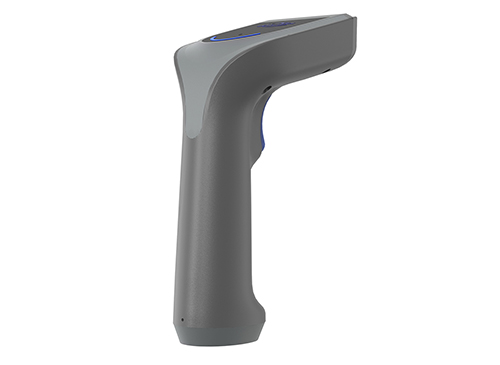

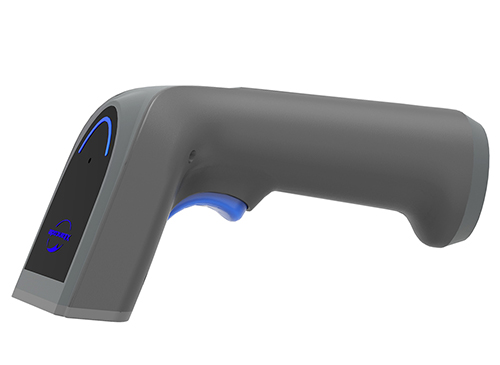

K1-BG with fashionable product appearance and professional high-performance CCD scan engine, support read printed and on-screen 1D barcode. It designed for retail, logistics, healthcare, warehouse and so on.
Back to list >>
Ultra-long Distance Data Transmission
150m(2.4GHz) and 30m(Bluetooth) long distance data transmission, supports automatic frequency modulation and inventory mode, and has 350KB memory to save data information.
Professional Scanning Module
High performance and superior resolution(2500) scanning module, easily decode one-dimension barcode, including low printed contrast rate, high density and damaged barcode.
Easily Switching Two Wireless Modes
2.4GHz wireless technology and Bluetooth connection , take BT connection if the connected device without USB interface, such as smart phone, ipad, PDA, POS,etc.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Durability and Sealing Performance
IP54 sealing performance, and bear the height of 1.5m dropping and ground impact.
| Performance Parameters | |
| Light source | 632nm visible red light |
| Resolution | 2500 pixels |
| Image sensor | Linear CCD |
| Decoding speed | ≥300 times/s |
| Decode capability | UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, Code 11, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. |
| Scan Angle | ±40°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Memory | 350KB(Store over 20,000 barcode data) |
| Battery | 2000mAh (charging time is 5h) |
| Current and voltage | 50mA(standby), 150mA (working) |
| Work frequency | 2.4GHz |
| Data communication distance | 150m(2.4GHz) , 30m (Bluetooth) (open area) |
| Setting method | Scan configuration barcode |
| Physical Parameters | |
| Over dimension | L X W X H (159.2x63.5x85mm) |
| Weight | 168g (excluding wire) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.5 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
