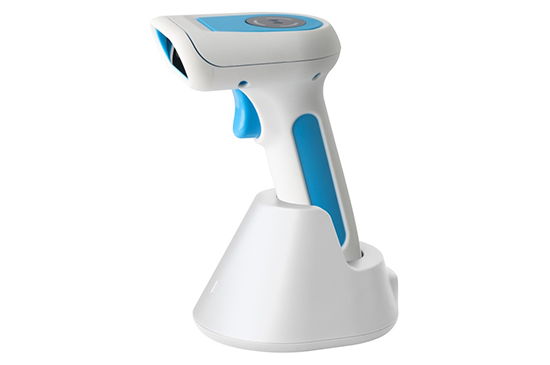

H2-BGC with professional high-performance image scan engine, and take Bluetooth and 2.4GHz wireless technology, with cradle for charging and receiving 2.4GHz data. It is designed for healthcare industry.
Back to list >>
Ultra-long Distance Data Transmission
2.4GHz(100m) and Bluetooth(30m) long distance data transmission, supports automatic frequency modulation and inventory mode, and has large memory to save data information.
Highly accurate and fast scanning
High performance scanning module, easily decode all common 1D and 2D symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Powerful Endurance Ability
4800mAh rechargeable polymer lithium battery, make device could continuously work for more than 50 hours with the fully charged.
Super Easy Operation and Compatibility
Compatible with multiple language and keyboard layout, work well with Android, Linux, Mac, Windows and other operating system.
Industrial Durability and Sealing Performance
IP54 industrial sealing grade, and bear the height of 1.5m dropping and ground impact.
| Performance Parameters | |
| Light source | 617nm for aiming, and 5600K LED for lighting |
| Resolution | 1280x1024 |
| Image sensor | CMOS |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: PDF417, Micro PDF417, Data Matrix, QR, Micro QR, Aztec, etc. |
| Scan Angle | ±360°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥3mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Memory | Save over 20,000 commodity barcode (EAN-13) |
| Battery | 4800mAh (charging time is 8h) |
| Current and voltage | 50mA(standby), 220mA (working), 5 VDC ±10% |
| Work frequency | 2.4GHz |
| Data communication distance | 100m(2.4GHz) and 30m(Bluetooth) (open area) |
| Setting method | Scan configuration barcode |
| Physical Parameters | |
| Over dimension | L X W X H (153.2x66x110.5mm(Scanner)/113.5x91x71.5mm(Cradle)) |
| Weight | 228g (Scanner), 216g (Cradle) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.5 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
