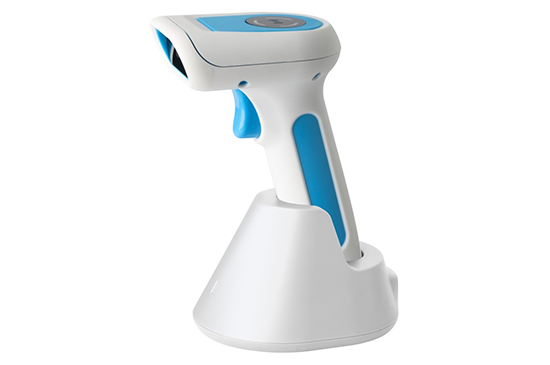

H1-BGC with professional high-performance image scan engine, and take 2.4GHz and Bluetooth wireless technology, with cradle for charging and receiving 2.4GHz data. Easily read printed and on-screen 1D symbology. It is designed for healthcare industry.
Back to list >>
Ultra-long Distance Data Transmission
100m(2.4G) and 30m(Bluetooth) long distance data transmission, supports automatic frequency modulation and inventory mode, and has large memory to save data information.
Professional Scanning Module
High performance and superior resolution(2500) scanning module, easily decode one-dimension barcode, including low printed contrast rate, high density and damaged barcode.
Powerful Endurance Ability
4800mAh rechargeable polymer lithium battery, make device could continuously work for more than 55 hours with the fully charged.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Grade Durability
IP54 industrial sealing grade, and bear the height of 1.5m dropping and ground impact.
| Performance Parameters | |
| Light source | Visible red light emitting diodes 632nm |
| Resolution | 2500 |
| Image sensor | Linear CCD |
| Decoding speed | ≥300 times/s |
| Decode capability | UPC/EAN, UPC/EAN with supplements, ISBN, ISSN, Code 128, Code 39, Code 39 (Full ASCII), code 11, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. |
| Scan Angle | ±40°, ±60°, ±60°(Roll, Skew, Pitch) |
| Scan precision | ≥3mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Memory | Save over 20,000 commodity barcode (EAN-13) |
| Battery | 4800mAh (charging time is 8h) |
| Current and voltage | 35mA(standby), 100mA (working), 5 VDC ±10% |
| Work frequency | 2.4GHz |
| Data communication distance | 100m(2.4GHz) and 30m(Bluetooth) (open area) |
| Setting method | Scan configuration barcode |
| Physical Parameters | |
| Over dimension | L X W X H (153.2x66x110.5mm(Scanner)/113.5x91x71.5mm(Cradle)) |
| Weight | 228g (Scanner), 216g (Cradle) |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.5 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
