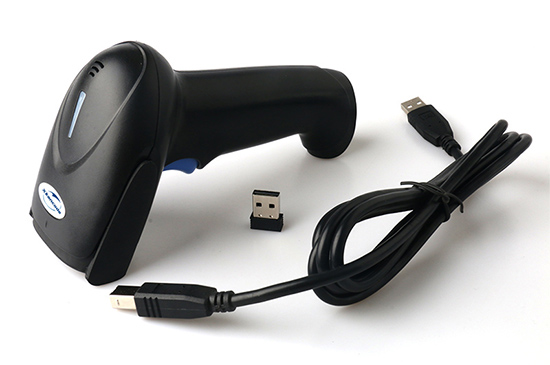

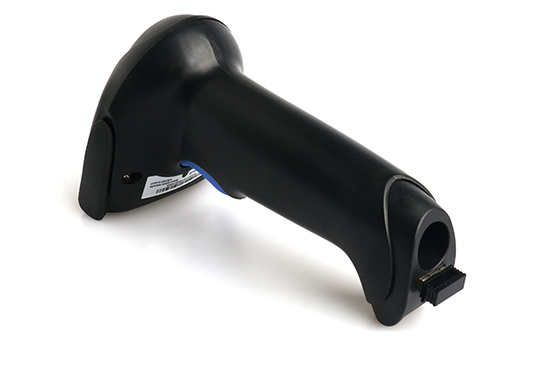

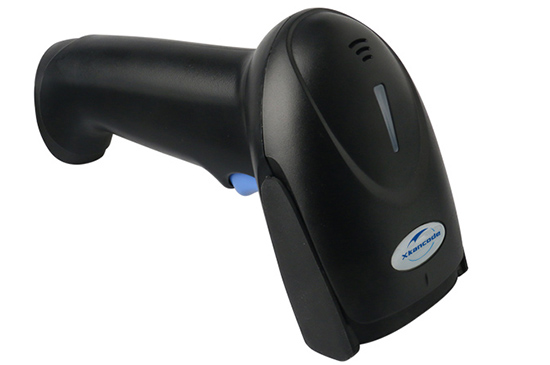

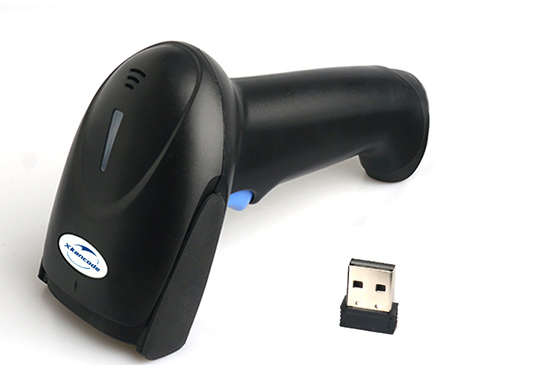

B2-G is an industrial grade 2D optical image scanner. It delivers industrial leading performance and durability in Retail, Logistics, Manufacturing, Medical store, Warehouse and other fields of applications.
Back to list >>
Excellent Identification Ability
High performance scanning module, easily decode all common 1D and 2D symbologies, have good performance in scanning fuzzy, low printed contrast rate and damaged barcode.
Long Service Life
Scan button with over 30 million times operation, and adopted ultra low power consumption.
Super Easy Operation and Compatibility
Compatible with multiple language and keyboard layout, work well with Android, Linux, Mac, Windows and other operating system.
Ultra-long Distance Data Transmission
150m long distance data transmission, supports automatic frequency modulation and
inventory mode, has 16MB memory to save data information.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.5m dropping and ground impact.
| Performance Parameters | |
| Light source | (610-640nm) for aiming |
| Resolution | 640x480 |
| Image sensor | CMOS |
| Decode capability | 1D: UPC/EAN, UPC/EAN with supplements, ISBN/ISSN, UCC, Code 128, Code 39, Code 39 (Full ASCII), code 32, Interleaved 2of 5, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI/Plessey, Chinese 2 of 5, China Postal Code, GS1 DataBar , etc. 2D: PDF417, Micro PDF417, Data Matrix, QR, Micro QR, Aztec, etc. |
| Scan Angle | ±360°, ±60°, ±55°(Roll, Skew, Pitch) |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Interface | USB, USB-COM, RS232(optional) |
| Trigger mode | Manual, Continuous automatic scan and auto sensing scanning(optional) |
| Memory | 16MB |
| Battery | 2000mAh (charging time is 5h) |
| Current and voltage | 55mA(standby), 180mA (working), 5 VDC ±10% |
| Work frequency | 2.4GHz |
| Data communication distance | 150m(2.4GHz) (open area) |
| Setting method | Scan configuration barcode |
| Physical Parameters | |
| Over dimension | L X W X H (150x70x95mm) |
| Weight | 160g |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.5 m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
